Hydro-Boost Brake System for 1964-1966 Ford Mustang

Hydro-Boost Brake System for 1964-1966 Ford Mustang
Item# HBFDMU6466
Condition:  Unit Finish:  Hoses/Fittings:  Information About Your Power Steering Pump and Steering Box For Hose Kit::  Master Cylinder:  Proportioning Valve:  Mounting:  Shipping:

Product Description

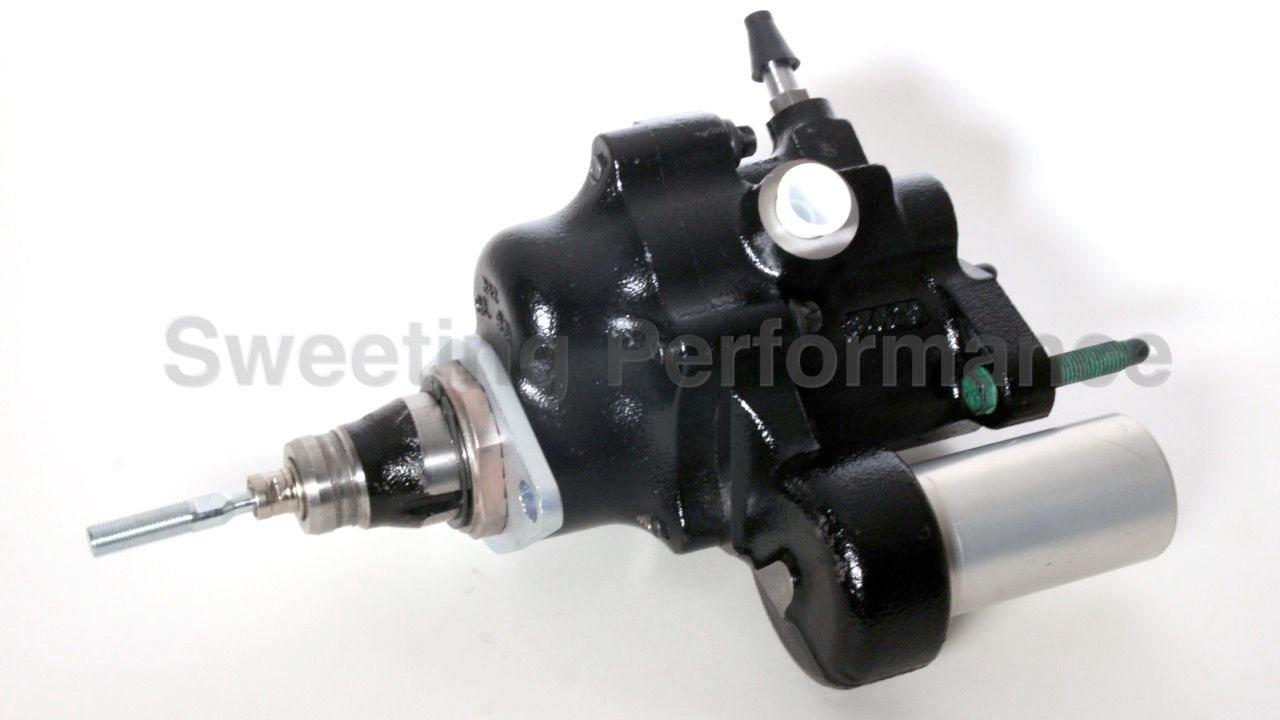

This Hydro-Boost hydraulic power brake booster is a retrofit for 1964-1966 Ford Mustangs. You can buy the booster by itself or use the drop down menus to see options like - master cylinders, hydraulic hoses, and chrome & powder coat, to make it a complete kit.

The answer to all of the problems associated with high performance vehicles. The Bosch Hydro-Boost is more powerful than factory vacuum boosters, and smaller than the 7" hot rod booster and can generate 1200 to 2000 psi at the calipers. It accepts master cylinders from 15/16" to 1 5/8" bore sizes. We stock factory replacements boosters but also modify new units for retro-fit / conversion for vehicles that didn't come with them.

The Hydro-Boost is powered by pressure from the power steering pump and requires no vacuum. The other option is a vacuum pump with a small bore master cylinder that jacks up the pressure to the calipers, but small bore masters won't put out the volume needed to fill caliper pistons, and vacuum pumps won't keep up. You can also spend a lot of money on great big calipers, but they tend to be more demanding of volume and pressure, so they don't work unless you have a Hydro-Boost. It provides great valve cover clearance, and exhaust pipe clearance when frame mounted. The Hydro-Boost fits any where a vacuum booster does. It can use stainless braided hoses or rubber type. We have many direct replacements, our own retrofit applications, and can design anything else.

Hydro-Boost® is a registered trademark of the Robert Bosch Corp. and we claim no ownership to it. We source, buy, rebuild and resell them, and/or modify them for retrofit.

Ford 1-1/16 inch Master Cylinder (Ports Facing Engine)
$125.00
Wilwood Remote Reservoir 1-1/8 Inch Polished Master Cylinder
$270.00
Wilwood Remote Reservoir 1-1/8 Inch Black Master Cylinder
$270.00
Wilwood Compact Reservoir 1-1/8" Tandem Master Cylinder Black
$270.00
Wilwood Compact Reservoir 1-1/8" Tandem Master Cylinder Polished
$270.00
Wilwood Natural Finish 1-1/8" Master Cylinder
$190.00
Wilwood 1-1/8" Tandem Master Cylinder Black
$240.00
Wilwood Burnished Polished 1-1/8" Master Cylinder
$240.00
Billet Aluminum Remote Power Steering Reservoir for Hydro-Boost Machine Finish
$180.00
Billet Aluminum Remote Power Steering Reservoir for Hydro-Boost Polished
$200.00
Billet Aluminum Remote Power Steering Reservoir for Hydro-Boost Black Finish
$200.00
Wilwood Combination Proportioning Valve
$89.00
4 Rubber Hydro-Boost Hose Kit
$265.00
Straight Reusable/Field Attachable Hose End for PTFE 6AN Stainless Braid Hose
$10.00
14MM O-ring to 6AN Straight Power Steering Adapter
$12.00
16MM O-ring to 6AN Straight Power Steering Adapter
$12.00
18MM O-ring to 6AN Straight Power Steering Adapter
$12.00
5/8 Inverted Flare to 6AN Straight Power Steering Adapter
$10.00
11/16 Inverted Flare to 6AN Straight Power Steering Adapter
$10.00
Hydro-Boost Low Pressure Spitter Return Adapter to 6AN
$10.00
3/8" Tube to 6AN Threaded Compression Fitting
$10.00
$90.00
$90.00
6AN Male-Female 90 Degree Swivel Adapter for Hydro-Boost & Power Steering Power Steering
$5.00
6AN Male-Female 45 Degree Swivel Adapter for Hydro-Boost & Power Steering Power Steering
$5.00
2lb Check Valve by Wilwood
$21.36
10lb Check Valve by Wilwood
$21.36
