1984-1999 Ford Truck F250 F350 Hydro-Boost Brake Booster Diesel or Hydroboost Conversion

1984-1999 Ford Truck F250 F350 Hydro-Boost Brake Booster Diesel or Hydroboost Conversion
Item# 2772-075-1984-1999
Condition:  Unit Finish:  Hoses/Fittings:  Master Cylinder:  Mounting:  Shipping:

Product Description

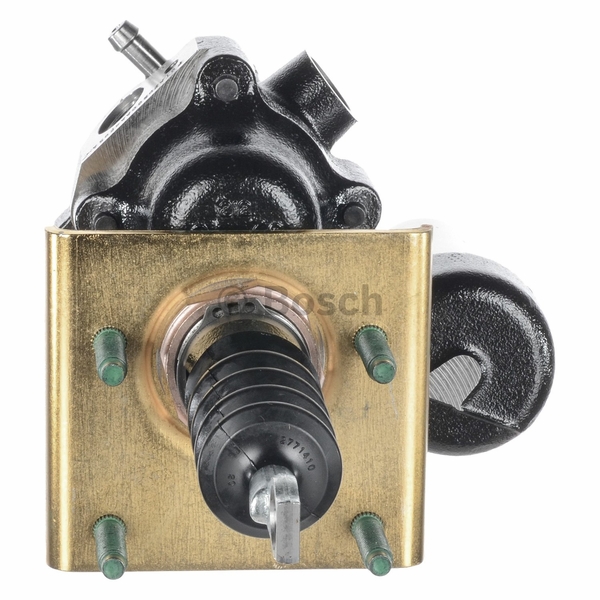

This Hydro-Boost hydraulic power brake booster is a retrofit for 1984-1999 Ford F250 and F350 Trucks. You can buy the booster by itself or use the drop down menus to see options like - master cylinders, hydraulic hoses, and chrome & powder coat, to make it a complete kit.

The answer to all of the problems associated with high performance vehicles. The Bosch Hydro-Boost is more powerful than factory vacuum boosters, and smaller than the 7" hot rod booster and can generate 1200 to 2000 psi at the calipers. It accepts master cylinders from 15/16" to 1 5/8" bore sizes. We stock factory replacements boosters but also modify new units for retro-fit / conversion for vehicles that didn't come with them.

The Hydro-Boost is powered by pressure from the power steering pump and requires no vacuum. The other option is a vacuum pump with a small bore master cylinder that jacks up the pressure to the calipers, but small bore masters won't put out the volume needed to fill caliper pistons, and vacuum pumps won't keep up. You can also spend a lot of money on great big calipers, but they tend to be more demanding of volume and pressure, so they don't work unless you have a Hydro-Boost. It provides great valve cover clearance, and exhaust pipe clearance when frame mounted. The Hydro-Boost fits any where a vacuum booster does. It can use stainless braided hoses or rubber type. We have many direct replacements, our own retrofit applications, and can design anything else.

Hydro-Boost® is a registered trademark of the Robert Bosch Corp. and we claim no ownership to it. We source, buy, rebuild and resell them, and/or modify them for retrofit.

Wilwood Natural Finish 1-1/8" Master Cylinder
$190.00
Wilwood 1-1/8" Master Cylinder Black E-Coat
$240.00
Wilwood Burnished Polished 1-1/8" Master Cylinder
$240.00
Ford 1-1/16 inch Master Cylinder with Plastic Reservoir
$125.00
SPEED Mopar Style 1-1/8 inch Universal Master Cylinder with Black Plastic Reservoir
$125.00
SPEED 1-1/8 inch Universal Corvette Style Master Cylinder
$79.00
SPEED GM Style 1-1/8 inch Aluminum Master Cylinder with Plastic Reservoir
$125.00
SPEED Iron 1-1/4 inch Universal GM Style Master Cylinder
$89.00
SPEED GM Style 1-1/4 inch Aluminum Master Cylinder with Plastic Reservoir
$125.00
GM 1.45" Bore Master Cylinder for Hydro-Boost
$150.00
Chevy Astro Van 1-1/4" Hydro-Boost Master Cylinder
$125.00
Dodge Aluminum 1-1/4 Master Cylinder
$125.00
Ford 1-1/4" Aluminum Master Cylinder with Cruise Control
$125.00
Ford 1-1/4" Aluminum Master Cylinder Non Cruise Control
$125.00
GM 1-5/16" Master Cylinder
$125.00
Dodge/GM Iron 1-5/16 Master Cylinder
$125.00
Dodge 1-5/16" Hydro-Boost Master Cylinder
$125.00
Ford 1-5/16" Hydro-Boost Aluminum Master Cylinder
$125.00
GM 1-5/16" Iron Master Cylinder
$89.00
Hydro-Max Master Cylinder with 2" (2 inch) Bore Size
$324.00
Hydro-Max Master Cylinder with 1-3/4" (1 3/4 inch) Bore Size
$324.00
Iron Hydro-Max Master Cylinder with 1-3/4" (1 3/4 inch) Bore Size
$300.00
Adjustable Wilwood Proportioning Valve, Knob Type
$41.94
2lb Check Valve by Wilwood
$21.36
10lb Check Valve by Wilwood
$21.36
Wilwood Combination Proportioning Valve
$83.94
Brake Booster Delete/ or Power Brake Booster Upgrade Bracket
$59.00
$369.00
$265.00
4 Rubber Hydro-Boost Hose Kit
$265.00
Reusable -6 AN Fitting for Stainless Braid Power Steering and Hydro-Boost Hoses
$12.00
14mm to -6 AN Power Steering and Hydro-Boost Fitting
$12.00
16 mm to -6 AN Power Steering and Hydro-Boost Fitting
$12.00
18 mm to -6 AN Power Steering and Hydro-Boost Fitting
$12.00
5/8ths to -6AN Power Steering and Hydro-Boost Fitting
$12.00
11/16ths to -6 AN Power Steering and Hydro-Boost Fitting
$12.00
Spitter Fitting to -6AN (conversion from hose barb for a stainless line on the HB Return)
$12.00
-6AN Compression Fitting
$12.00
$90.00
$90.00
-6AN male female 90 Degree Swivel for Hydro-Boost & Power Steering
$5.50
-6AN male female 45 Degree Swivel for Hydro-Boost & Power Steering
$5.50
Billet Aluminum Remote Power Steering Reservoir for Hydro-Boost Machine Finish
$135.00
Billet Aluminum Remote Power Steering Reservoir for Hydro-Boost Polished Finish
$150.00
Billet Aluminum Remote Power Steering Reservoir for Hydro-Boost Black Anodized
$150.00
